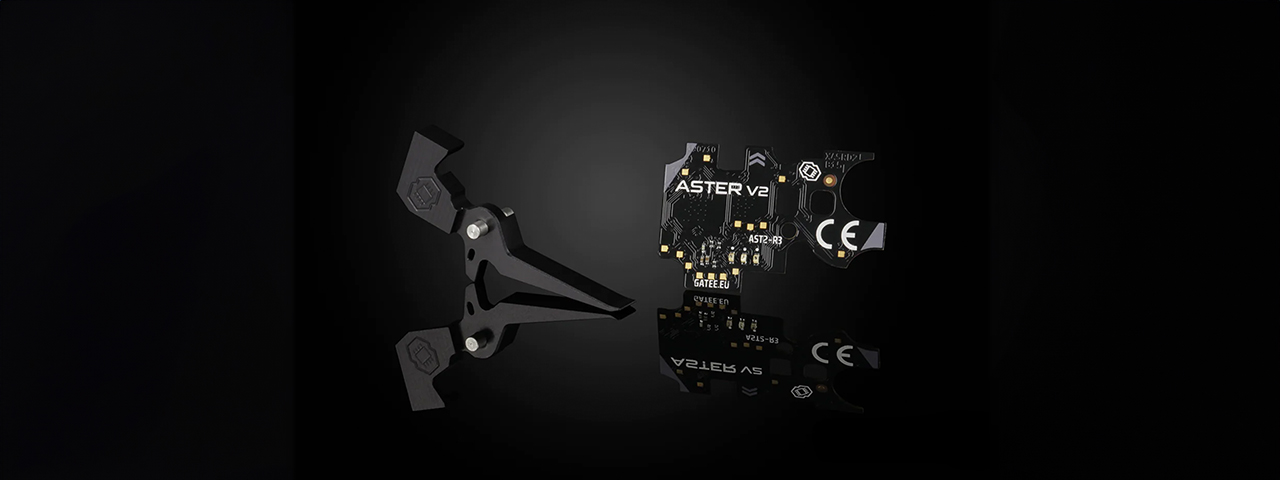

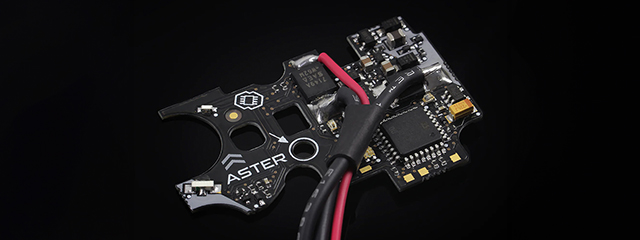

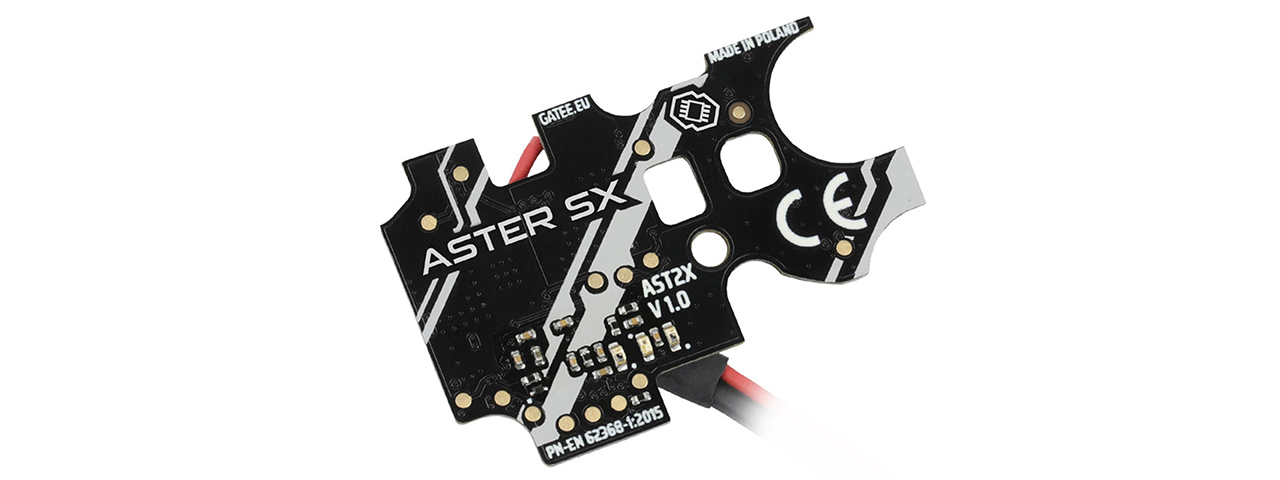

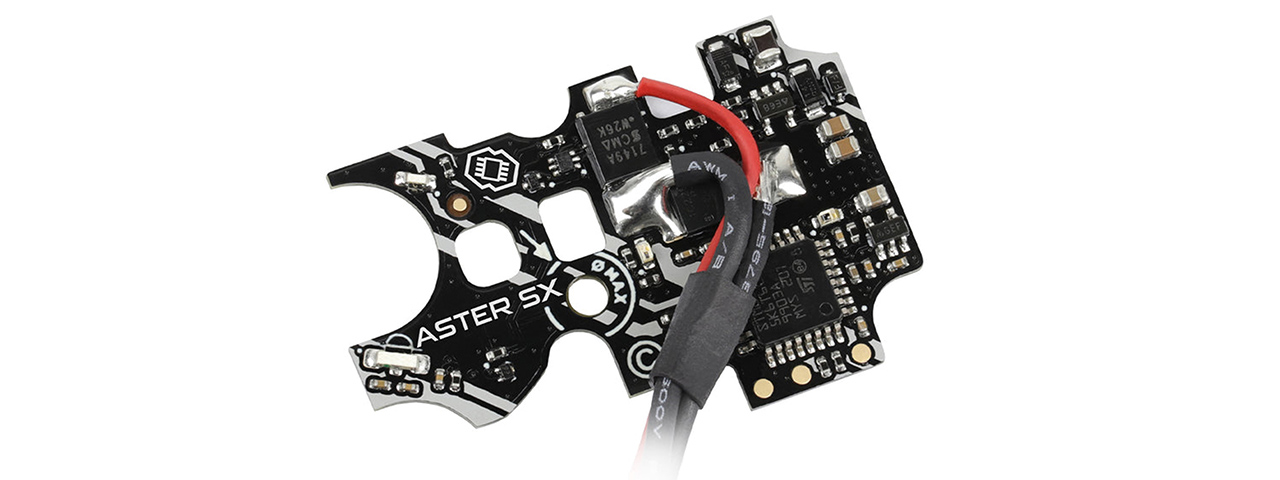

ASTER V2 SE Expert with Quantum Trigger - (Rear Wired)

The ASTER V2 SX Expert with Quantum Trigger is GATE's most advanced electronic trigger unit yet, engineered to push your rear-wired V2 gearbox build beyond conventional limits. Designed as a next-generation upgrade to the ASTER SE, this unit features full compatibility with brushless motors and supports up to 11.1 V LiPo batteries, making it ideal for high-performance airsoft setups. A built-in voltage boost converter allows reliable operation even with weak or heavily drained power sources, down to as low as 1.2 V during firing. With a 1 mm thick PCB and enhanced heat dissipation under heavy loads, the ASTER SX can run M200 springs and demanding configurations without overheating or failure. It also supports DSG, SSG, 19-tooth, and Infinite Torque-up gears, giving you a broad range of tuning possibilities. This model includes a free Quantum Trigger that allows precision hair-trigger programming with up to 60 levels of sensitivity in just the first millimeter of pull. Easy trigger and selector-based programming lets you set pre-cocking modes, adaptive braking, and trigger sensitivity without any cables. For even deeper control, connect via USB-Link or Blu-Link to access diagnostics, firmware updates, and expanded settings using the GCS App. The ASTER SX also features a deep sleep mode with just 0.29 mA draw to preserve battery life during downtime. Built to be future-proof and compatible with the full GATE Ecosystem, this ETU delivers lightning-fast response, mechanical lock options, and superior feedback via LED, vibration, and selector positioning. Whether you're upgrading for MILSIM realism or competitive edge, the ASTER V2 SX Expert transforms your AEG into a precision instrument built for modern airsoft warfare.

Specifications

Brand: GATE
Model: ASTER SX V2 Expert
Compatibility: V2 gearboxes
Trigger: Quantum Trigger included
Spring Compatibility: Up to M200
Motor Compatibility: Brushless and brushed motors
Battery Support: Up to 11.1 V LiPo
Voltage Operation: As low as 1.2 V during shot
Firmware Updates: USB-Link and Blu-Link compatible
PCB Thickness: 1 mm
Sleep Mode Current: 0.29 mA
Advanced Programming: Trigger or GCS App
Pre-Cocking: Automatic, 3 modes
Brake System: Adaptive Active Brake
Gear Compatibility: DSG, SSG, Infinite Torque-up, 19T, standard
Color: Black (Quantum Trigger may vary)

Features

Full compatibility with popular brushless motors and up to 11.1 V batteries
Enhanced heat dissipation under high loads
Operates with stronger springs up to M200
Includes free Quantum Trigger with customizable sensitivity
Trigger programming with easy-to-use LED, vibration, and selector feedback
Self-learning automatic pre-cocking with LOW, MID, HIGH modes
Active Brake with adaptive mode
Calibration via trigger and selector only
USB-Link and Blu-Link compatibility for firmware updates and diagnostics
Hair-trigger detection with up to 60 sensitivity levels in the first millimeter
Foregoes reverse polarity protection for improved performance
Part of the GATE Ecosystem with app and accessory support
Firmware updates via Internet
Built-in voltage boost converter for stable operation with low or weak batteries
Deep sleep mode with ultra-low 0.29 mA current consumption
Operates at very low voltage, even 1.2 V during shots
Supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gear setups
Option to use a mechanical trigger lock
Durable 1 mm thick PCB construction
Enhanced Sensor Diagnostic Mode
Rev. 2 De-Cocking system
Designed as the next-gen replacement for ASTER SE
