Eshooter Kestrel V2 SE Electronic Trigger Unit (ETU) for V2 Gearbox AEGs w/ App Control and Smart Fuse Protection - Front Wired

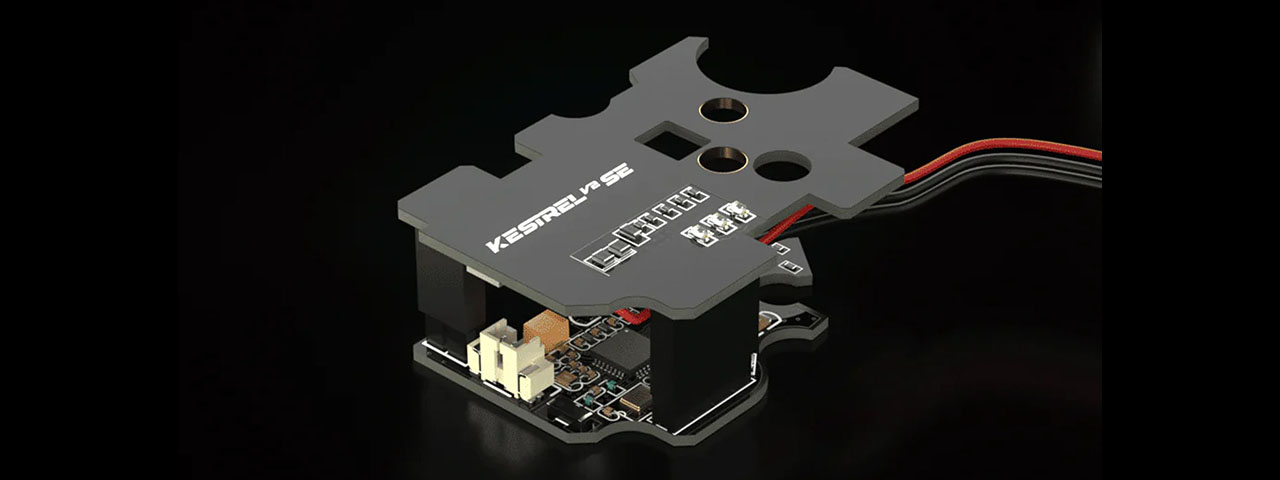

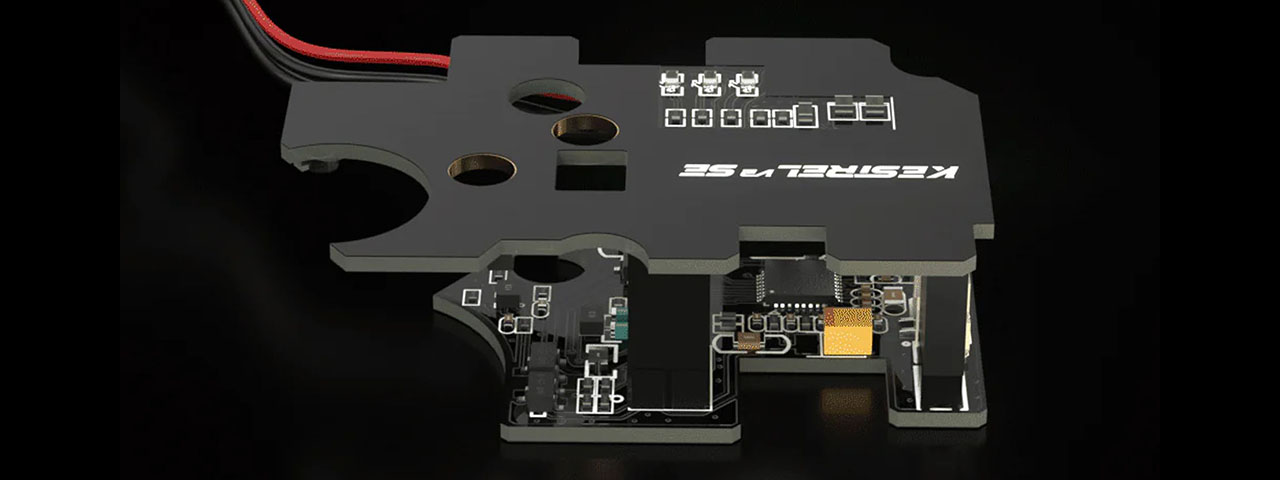

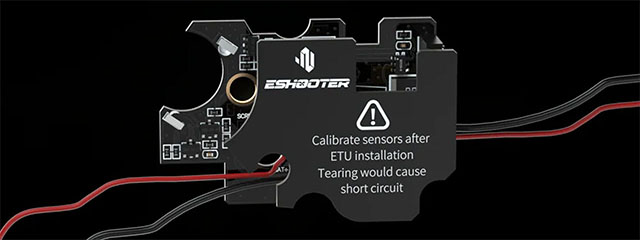

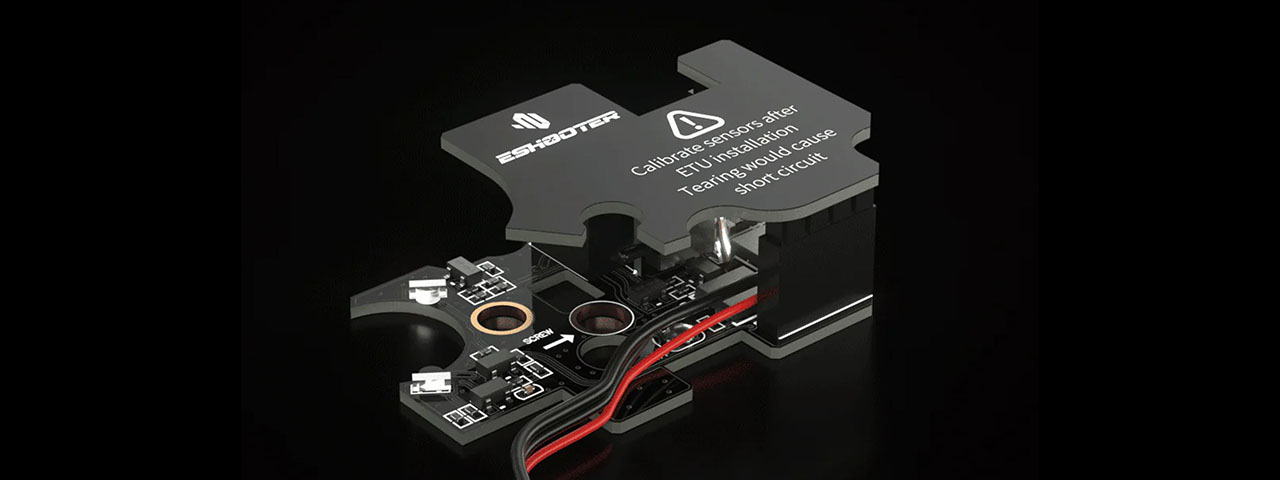

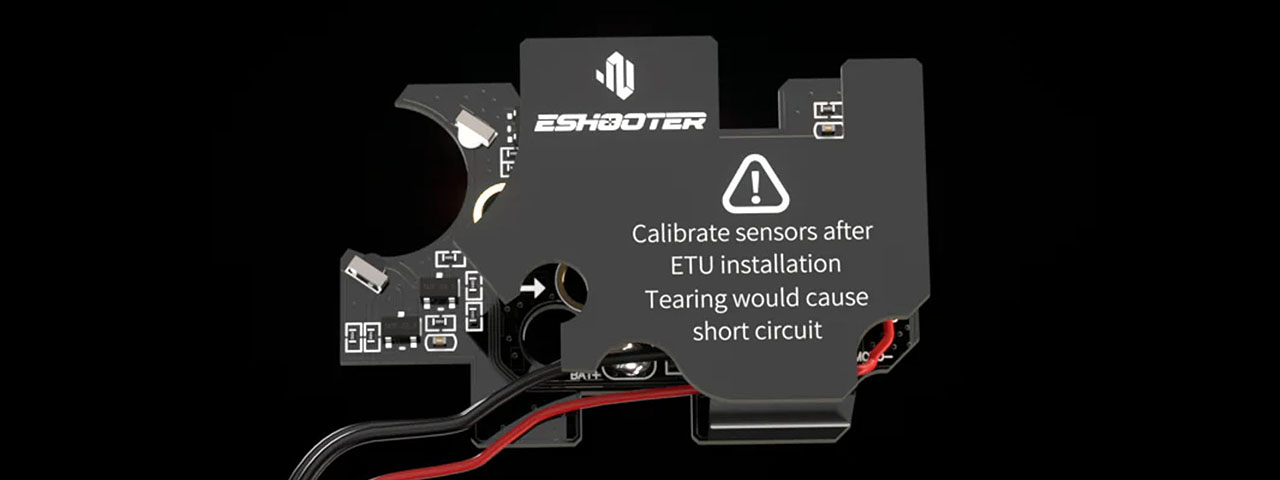

The Eshooter Kestrel V2 SE Electronic Trigger Unit delivers smart, app-controlled performance upgrades for airsoft AEGs using standard V2 gearboxes. This front-wired ETU integrates seamlessly into most Tokyo Marui-based replicas and provides players with powerful customization through the Eshooter App. With 200 levels of pre-cocking adjustment, users can fine-tune trigger response and cycle timing to achieve precise, high-speed shooting. The SE model retains Eshooter's advanced functions while offering a budget-friendly entry point for players seeking premium electronic control. The unit supports both brushed and brushless motors, handles voltages from 3.75V to 17V, and offers full firing mode control including safe, semi, binary, burst, auto, and sniper options. Sniper delay settings from 0.5 to 3 seconds provide precision for designated marksman configurations, while ROF control allows users to adjust fire rate to match battery output. Reliability and protection are core to the Kestrel V2 SEs design. Built with adaptive active braking and a smart electronic fuse, it safeguards internal components from overheating, overloads, and short circuits while ensuring smooth cycle stops and consistent gear alignment. The ETU features locked rotor protection, a sleep mode that activates after one hour of inactivity, and firmware that can be updated wirelessly via the Eshooter App for continuous performance enhancements. Its conformal-coated PCB resists dust and humidity, and the 1.5mm*2 high-temperature Teflon wiring prevents damage during prolonged use. Compatible with LiPo, LiFe, and LiHv batteries, this ETU is engineered to meet the demands of both competitive and recreational airsoft players. The Eshooter Kestrel V2 SE offers a combination of reliability, smart protection, and precision control that makes it one of the most accessible and advanced electronic trigger units for V2 AEG platforms today.

Specifications

• Brand: Eshooter
• Model: Kestrel V2 SE ETU
• Compatibility: Tokyo Marui Standard V2 Gearboxes
• Wiring Configuration: Front Wired
• Voltage Range: 3.75V to 17V
• Operating Current: 17mA
• Supported Motors: Brushed and Brushless
• Supported Batteries: LiPo, LiFe, LiHv
• Selector Modes: SAFE, SEMI, BINARY, BURST, AUTO, SNIPER
• Pre-Cocking Adjustment: 200 Levels
• Sniper Delay: 0.5s, 1s, 2s, 3s
• ROF Control: Adjustable
• Cycle Detection: DSG, HSG, Standard Gear Compatible
• Firmware Update: OTA via Eshooter App
• Active Brake: Adaptive
• Smart Fuse: Electronic Auto-reset
• Locked Rotor Protection: Yes
• Sleep Mode: 1 Hour Idle Timer
• Wire Material: High Temperature Teflon
• Wire Diameter: 1.5mm*2
• Surface Protection: Conformal Coating
• Operating Temperature: -20C to +60C
• Humidity Resistance: <80 percent
• Dimensions: 47.4 x 28.7 x 13.5mm
• Weight: 27.6g

Features

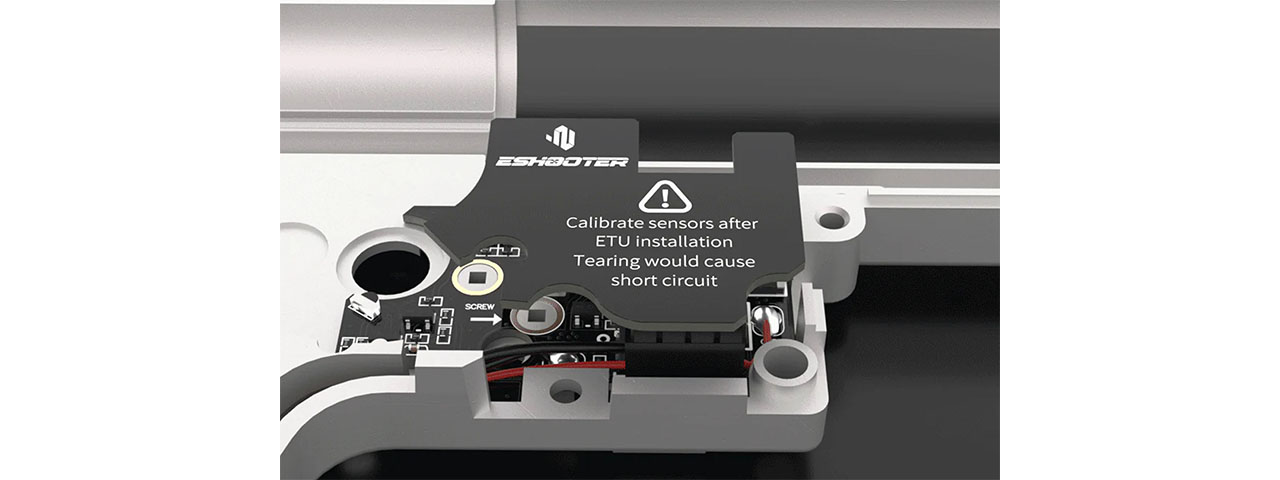

• Designed for standard Tokyo Marui V2 gearboxes with front-wired configuration
• Budget-friendly SE edition maintaining Kestrels advanced smart ETU functionality

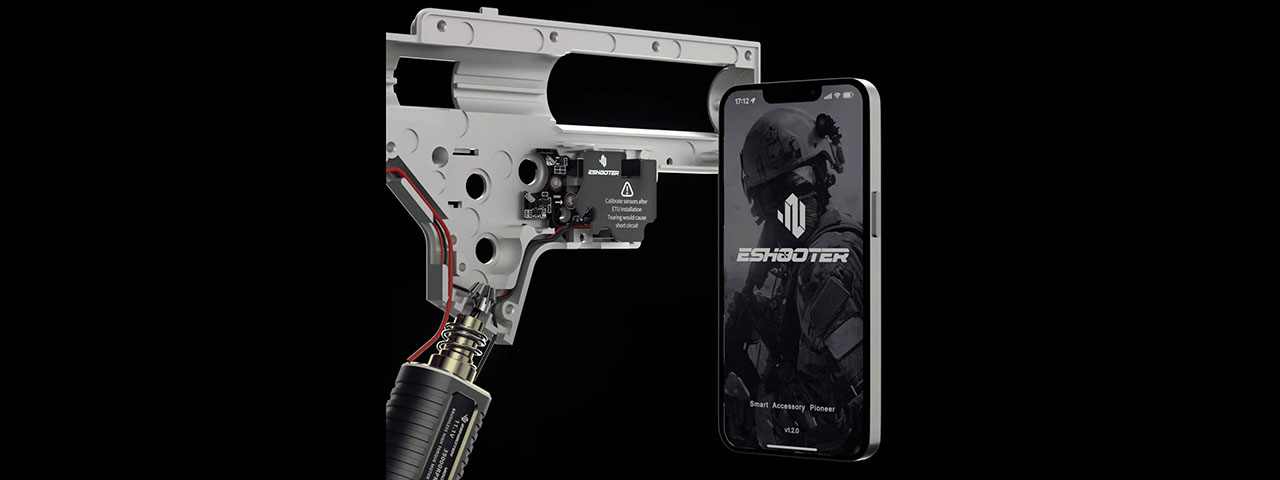

• Wireless Eshooter App control for real-time configuration and performance tracking
• 200-level pre-cocking adjustment for enhanced trigger response and precision firing
• Supports brushless and high-speed/high-torque motors including SOLINK models
• Selectable firing modes: SAFE, SEMI, BINARY, BURST, AUTO, and SNIPER
• Save up to 3 personalized settings and switch profiles using trigger input
• Rate of fire control for precise AEG speed adjustment regardless of battery voltage
• Sensor calibration ensures reliable and consistent shot cycles
• Active brake system increases gearbox longevity and stabilizes piston position
• Cycle detection supports DSG, HSG, and standard gears
• Smart fuse with overload, overheat, and short-circuit protection
• Battery protection system monitors voltage and prevents over-discharge
• Firmware updates supported via wireless OTA connection through Eshooter App
• Sleep mode engages after 1 hour of inactivity to preserve battery life
• Locked rotor protection prevents gearbox and motor damage during malfunction
• Sniper delay feature allows controlled firing intervals of 0.5s, 1s, 2s, or 3s
• High temperature resistant 1.5mm*2 Teflon wiring ensures durability during extended use
• Supports multiple battery types including LiPo, LiFe, and LiHv
• Surface conformal coating provides environmental resistance against moisture and dust

Package Includes: 1x Base Plate, 1x Sensor, 1x Power Cord, 1x Top Plate
Product Barcode: 193939146151
